Product Description

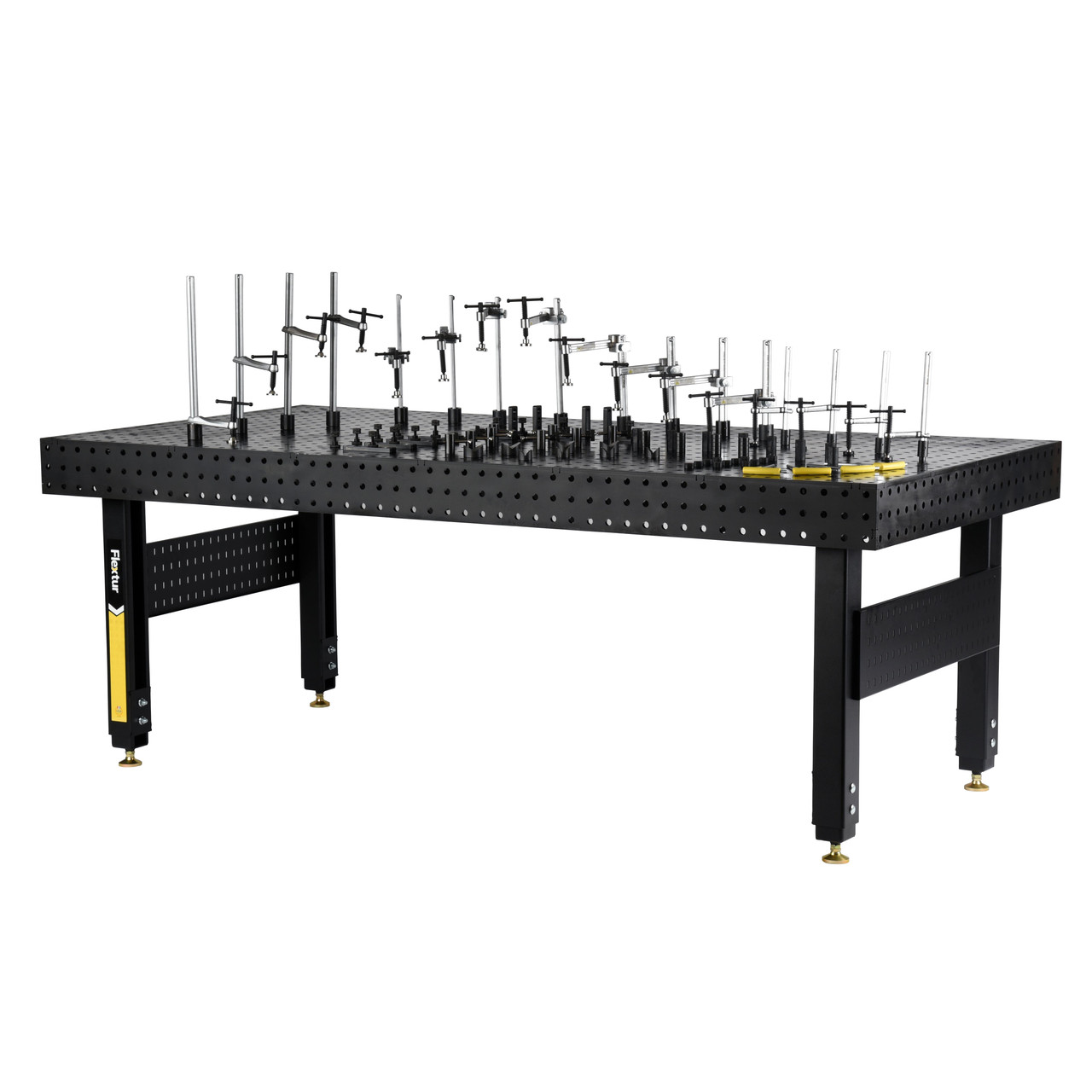

This Package includes a Flextur™ Nitride Welding Table 48″L x 96″W x 35″H, with 1/2″ black top supported by 3/8″ x 5″ struts every 16″, Flextur™ Tool Board panels, a full bottom shelf, casters, and a 2,000 lbs. capacity. Surface flatness is +/- .015″ over 4 square feet. The dual-layer protection of nitride & black oxide is a powerful combination. Both harden and prevent corrosion, extending the life of your table – while maintaining flatness and structural integrity. All 48″ Tables come equipped with heavy-duty swiveling lockable 2″W x 6″H casters. Changeover is easy and quick with movable 16mm locator pin in a 2″ grid pattern. Skirting along all sides has the same hole configuration and gives the flexibility to extend your table in any direction, up to 24″, with a Flextur Fixture Block for larger Weldments. Well suited for larger jobs, Flextur Welding Tables will improve accuracy and greatly reduce set up time for complicated Weldments. Inexperienced Welders can easily make an accurate setup and become productive in minutes with this Welding Table. Onboard steel Flextur tool board panels keep tools organized and within easy reach. Base requires assembly but all welding table tops ship assembled.

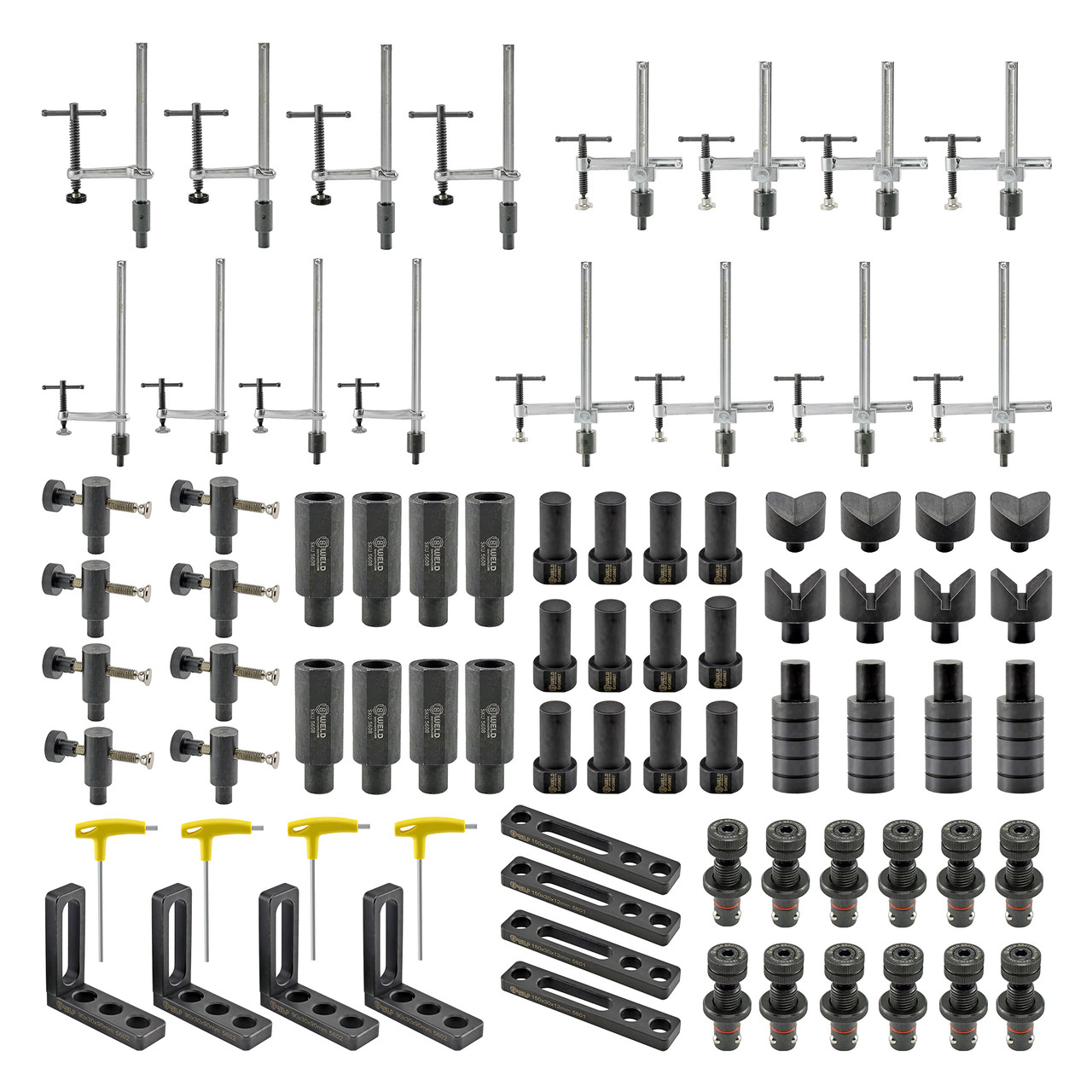

In addition, you get a Flextur 80-piece Fixturing Kit for Welding. Use with Flextur Welding Tables and tables with 16mm holes. This extensive 80 Piece Fixturing Kit has all of the clamps and accessories you’ll need to be productive with your table. This extremely capable kit will have you covered no matter the task at hand. Recommended for Flextur 36″ x 72″, 48″ x 48″ and 48″ x 96″ Welding tables. All of the accessories included in this kit are also sold separately. A complete line of Flextur accessories is available to outfit your table. American Made in Dalton, Ohio U.S.A.
- Clamp 5/8″ x 7 7/8″ vertical (4)
- Clamp 5/8″ x 11 1/4″ vertical (4)
- Clamp 5/8″ x 7 7/8″ vertical, adjustable throat (4)
- Clamp 5/8″ x 11 1/4″ vertical, adjustable throat (4)
- Clamp 5/8″ Horizontal (8)
- Ball Lock Bolt (12)
- Locator Pin 7/8″ (12)
- Locator Pin Flat, 1.125″ (8)
- Locator Pin 1.125″ (4)
- Straight Edge Stop 5 7/8″ (4)
- Angle Bracket 90° (4)
- V Block 120° (4)
- V Block 90° (4)
- Hex Wrench (4)
Key Advantages:
- Nitrided surface for superior hardness and corrosion resistance
- Large 48" x 96" work area for oversized projects
- Precision hole grid for accurate, repeatable setups
- Excellent resistance to weld spatter adhesion
- High load capacity for heavy-duty applications
- Compatible with a wide range of fixturing tools
- Long-lasting performance with minimal maintenance
- FIVE SIDED CLAMPING CAPABILITY!
