Product Description
All BuildPro® Tables are constructed from 5/8 thick steel plate, with ∅5/8 CNC machined and holes chamfered in a 2" grid pattern. All tables, except the BuildPro® MAX series, have 1.7" slots between plates.
Place a BuildPro® Table in your shop, and you will discover how modular fixturing will benefit your operation in greater productivity and improved work quality. Enjoy fast setup replication and reduced project lead times in prototyping, short production runs, or dedicated volume production runs.

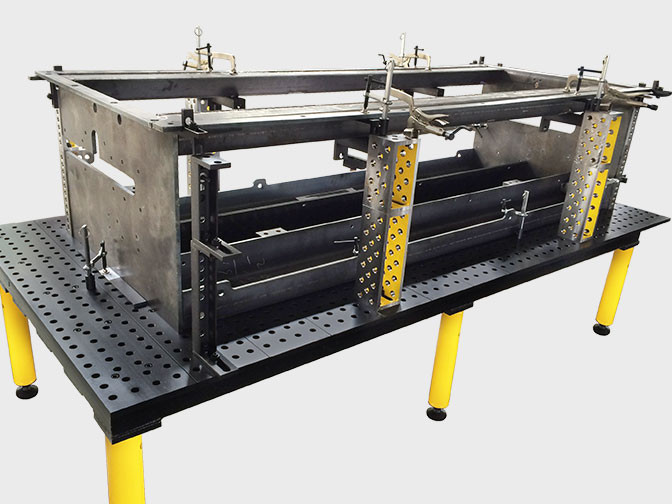

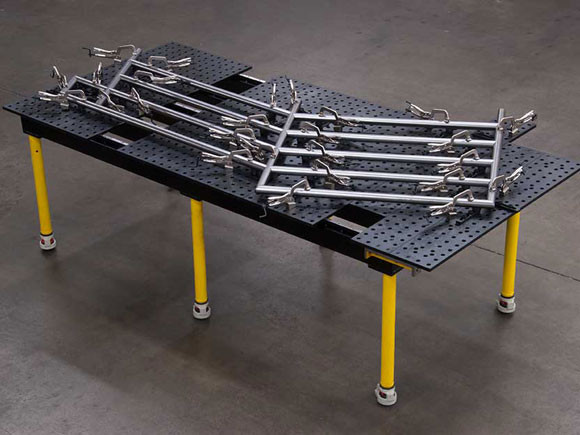

The New BuildPro MAX has a continuous plate tabletop surface with 33% more machined holes than the standard, slotted BuildPro Tables, for a maximized work surface. Use the BuildPro MAX to: Set-up heavy duty, large, or complex fixtures, or set-up more than one fixture at a time. Utilize the additional holes for clamping at multiple points for greater fixturing accuracy.
- 8 X 4

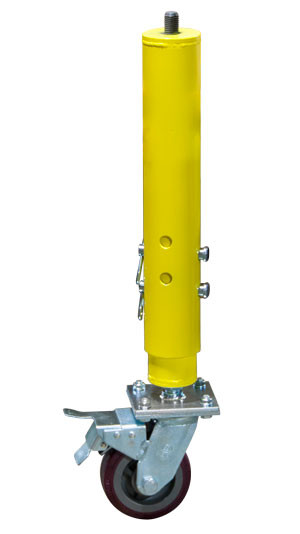

- Includes heavy duty casters
- Nitrided finish for easy cleanup
- Adjustable table height from 33-1/4" to 43-1/4"
- Table flatness 0.012"/3 feet
- Hole diameter 0.625" +- 0.0015
- Plate thickness 0.63" +- 0.004
